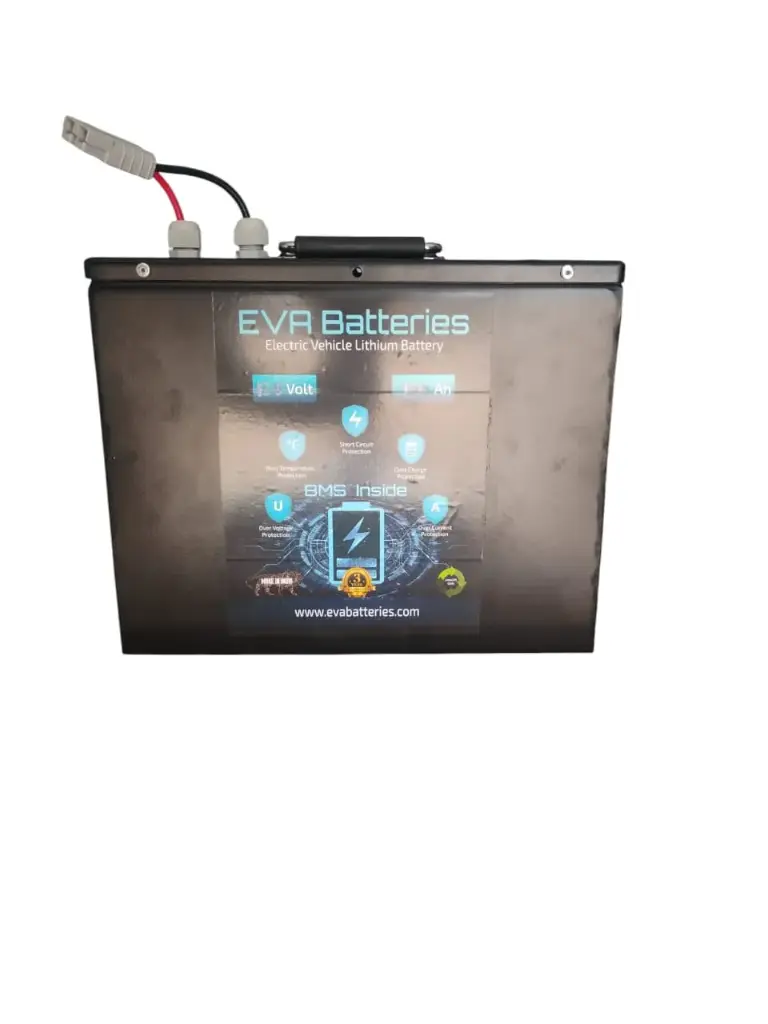

Inverter 12.8V 100Ah LiFePo4 Battery
🔋Â
| Specification | Details |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePOâ‚„) |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah (1280Wh) |
| Cycle Life | 2000+ cycles (at 80% Depth of Discharge) |
| Charging Voltage | 14.4V ± 0.2V |
| Float Voltage | 13.8V |
| Charging Current | Recommended: 20A (Max: 50A) |
| Discharge Cutoff Voltage | 10.8V – 11.0V |
| Discharge Current | Continuous: 50A (Peak: 100A for 5s) |
| Battery Management System (BMS) | Built-in Overcharge, Over-discharge, Short Circuit Protection |
| Weight | ~12-15 kg |
| Dimensions (LxWxH) | Approx. 300mm x 160mm x 240mm (Varies) |
| Operating Temperature | Charge: 0°C to 45°C / Discharge: -20°C to 60°C |
| Communication | Optional (RS485, CAN, Bluetooth) |
| Warranty | 5+ Years |
