General Specifications:

• Battery Type: Lithium-ion (Li-ion)
• Nominal Voltage: 7.4V (Two cells in series, each 3.7V nominal)
• Capacity: 2000mAh (2Ah)
• Energy: 14.8Wh (7.4V × 2Ah)
• Cell Configuration: 2S1P

Electrical Characteristics:

• Charge Voltage: 8.4V (Fully charged state)
• Cut-off Discharge Voltage: 6.0V (3.0V per cell)
• Continuous Discharge Current: 2000mah
• Max Instantaneous Discharge Current: 2000mah
• Internal Resistance: Typically ≤100mΩ

Charging Parameters:

• Standard Charging Current: 0.5C (1A)
• Fast Charging Current: 1C (2A)
• Charging Time: ~2-4 hours (depending on charge current)
• Charging Method: Constant Current (CC) followed by Constant Voltage (CV)
• Charger Type: Lithium battery charger with a balanced charging circuit

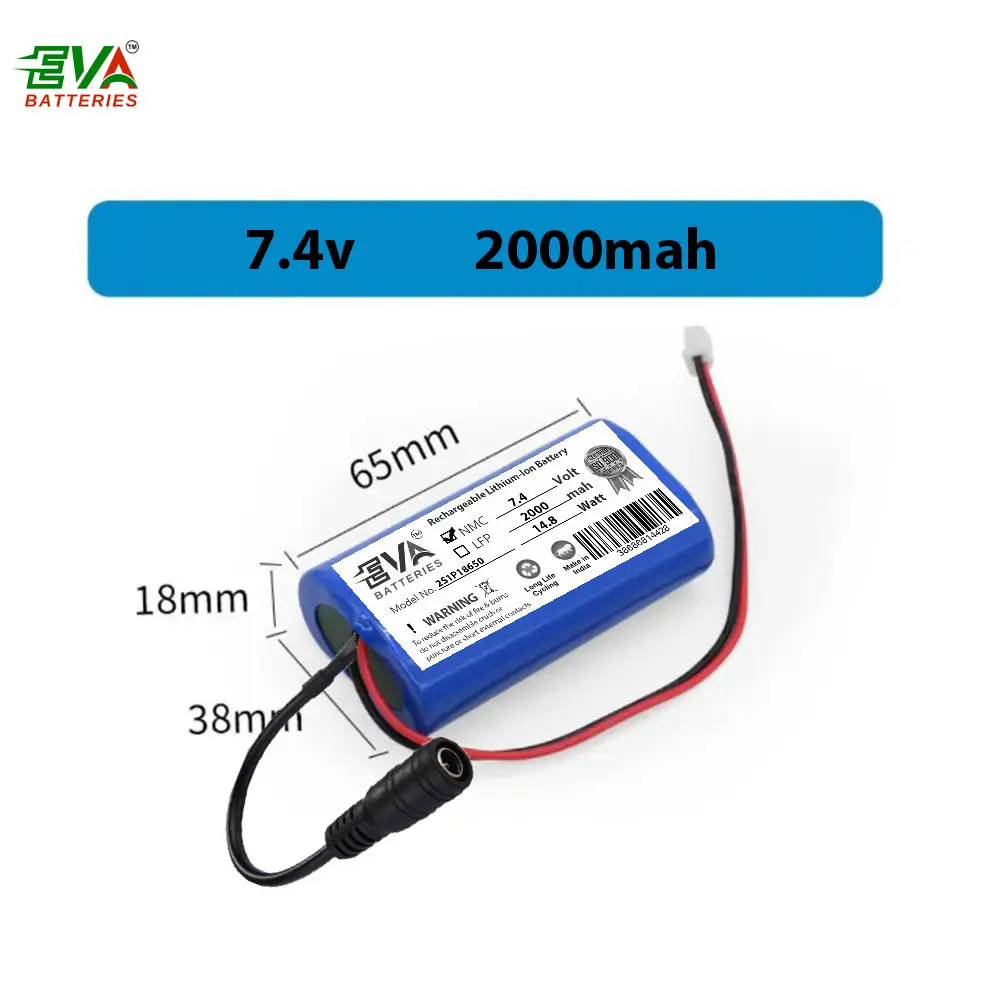

Physical Dimensions:

• Size: Varies by form factor (Cylindrical 18650 or Pouch)
  • 18650-based pack: ~38mm × 18mm × 68mm
• Weight: ~100-150g

Safety & Protection:

• Built-in Protection Circuit Module (PCM) (Optional):
  • Overcharge protection (~4.2V per cell)
  • Over-discharge protection (~3.0V per cell)
  • Overcurrent & short-circuit protection
  • Temperature protection (if included)

Applications:

• RC toys (cars, drones, boats)
• Portable electronics
• LED lighting
• DIY robotics
• Medical devices
• Backup power for embedded systems
